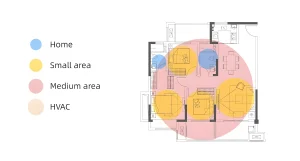

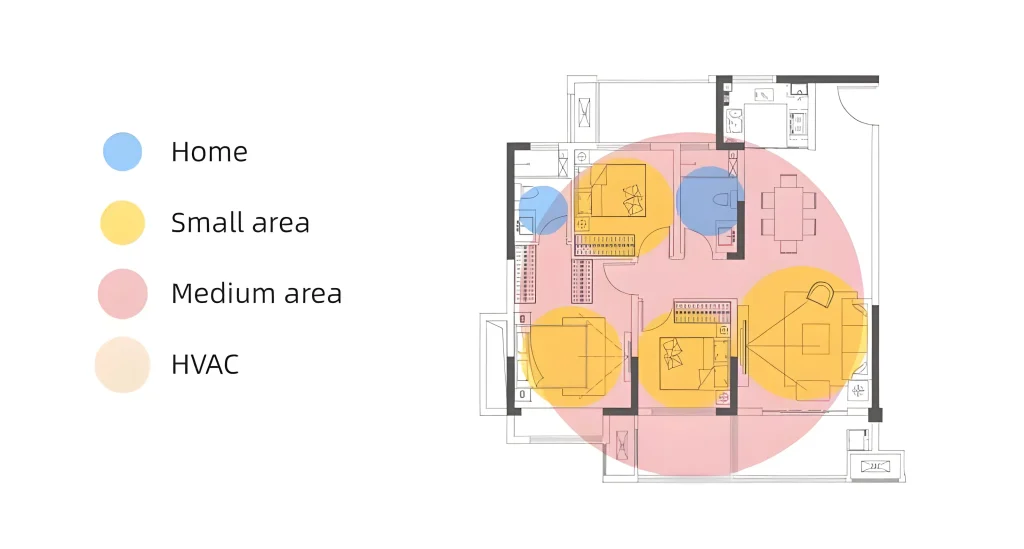

This diagram illustrates the spatial distribution of various functional zones within a residential floor plan. Color-coded overlays indicate:

• Blue (Home): Core home control or monitoring points.
• Yellow (Small area): Targeted coverage zones, likely for localized systems or devices.
• Beige (HVAC): HVAC unit location and approximate coverage zone.
• Red (Medium area): Broader coverage areas, possibly indicating the range of central systems.

The layout shows efficient overlap between zones, ensuring comprehensive coverage throughout the living space.

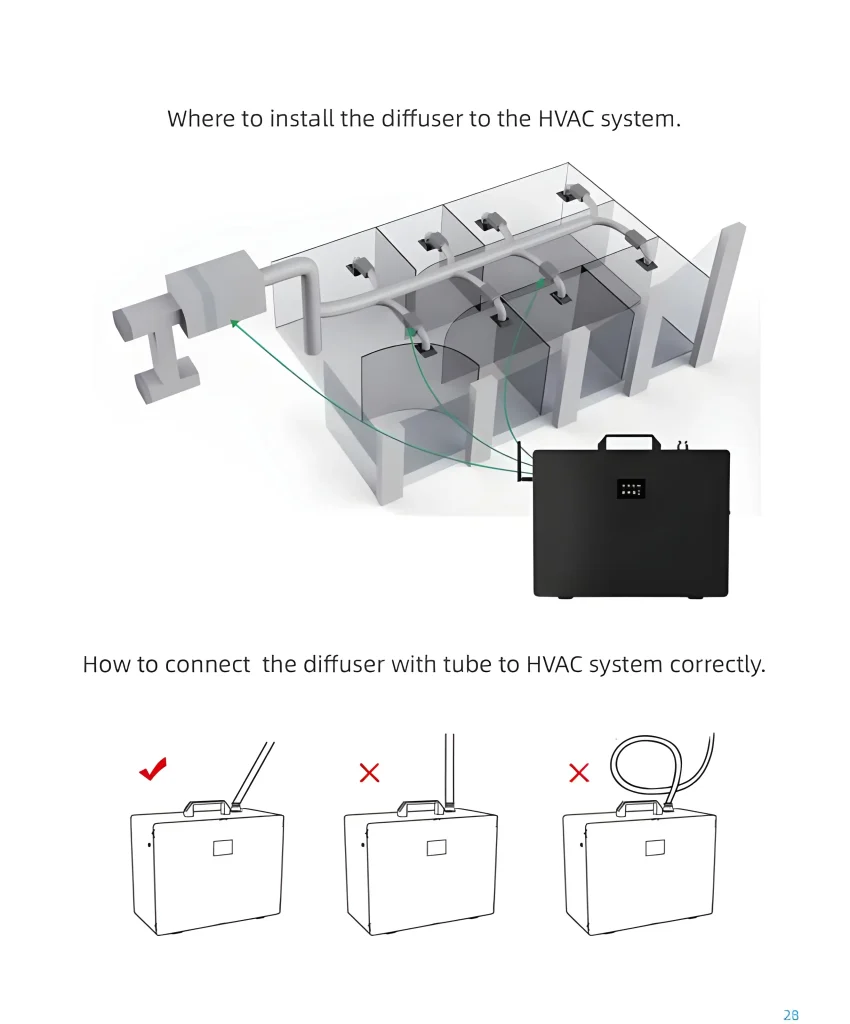

This visual guide shows how to properly install and connect a diffuser to an HVAC system:

• Top Section: Indicates the correct placement of the diffuser connection within the HVAC ducting—downstream in the airflow, after the blower and before the air outlets.
• Bottom Section: Demonstrates proper tubing connection to the diffuser:
  • ✅ Tube should be inserted at an upward angle, avoiding tension.
  • ❌ Do not connect vertically down or allow coiled tubing, which may restrict airflow or cause leakage.

Correct installation ensures optimal scent diffusion and system performance.

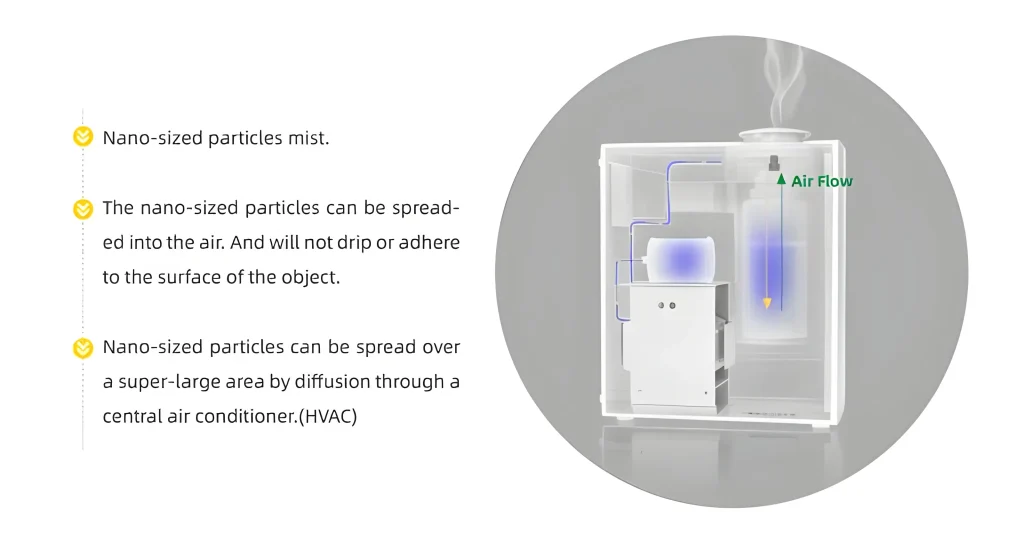

This illustration explains the diffusion process of nano-sized particles using an HVAC-integrated diffuser:

• ✅ Nano-sized mist: Particles are ultra-fine and form a dry mist.
• ✅ No residue: These particles disperse into the air without dripping or settling on surfaces.
• ✅ Wide coverage: When connected to a central HVAC system, the nano mist can efficiently cover large areas via air circulation.

The internal diagram shows airflow guiding the mist upward, ensuring consistent and even diffusion.

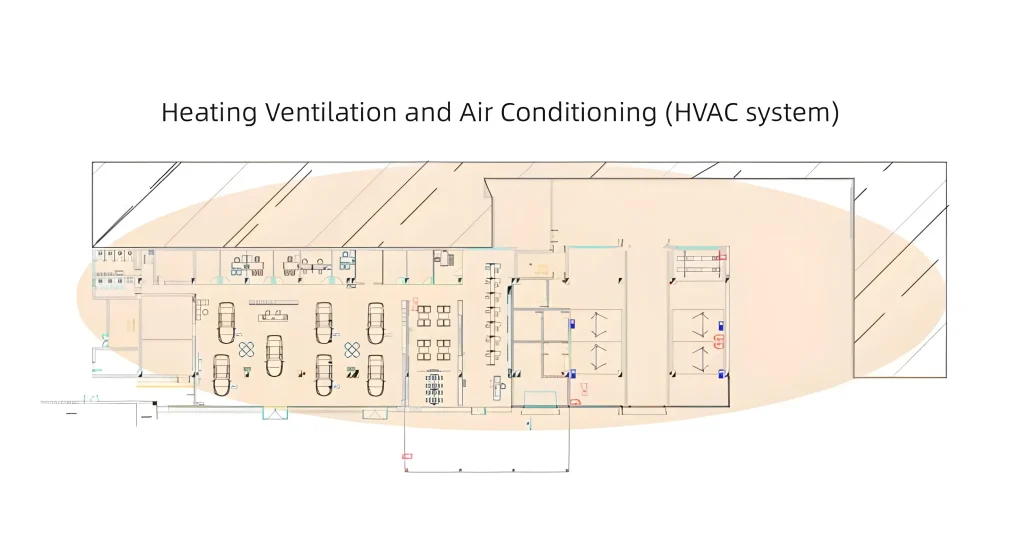

This diagram shows the HVAC system’s coverage across a commercial floor plan.

The shaded area represents the airflow distribution, indicating where conditioned or scented air is evenly dispersed. It highlights how the HVAC system ensures consistent air quality and comfort throughout the entire space.

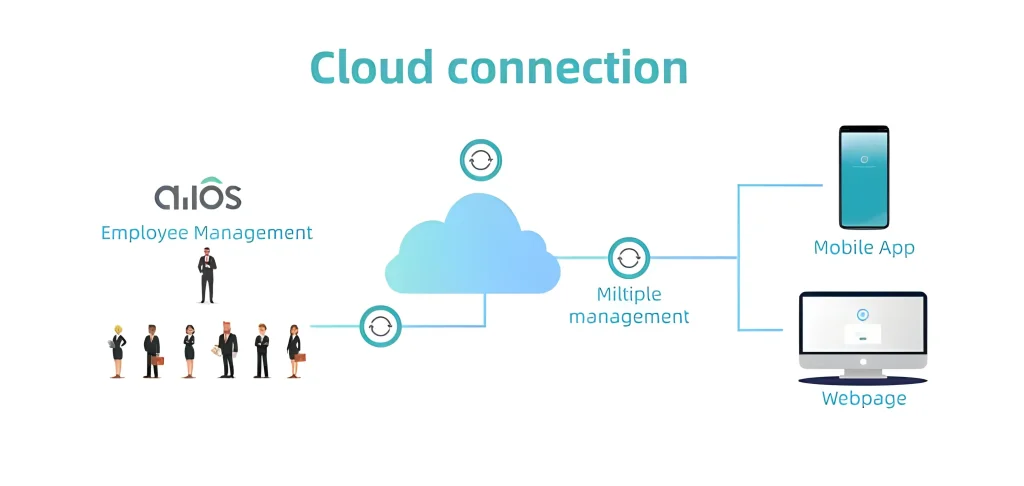

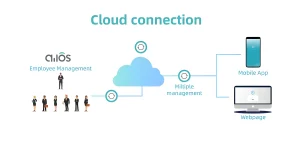

This diagram illustrates a cloud-based employee management system.

The system connects all users to the cloud, enabling centralized and synchronized management. Through the cloud, employee data can be accessed and managed via both mobile app and web page, allowing real-time control from multiple platforms.

This infographic showcases a smart equipment management system powered by AI and IoT technologies. It highlights six core modules designed to enhance efficiency, safety, and control:

1. AI Intelligent Data Analysis
   Uses real-time sensing and AI models to improve decision-making and reduce reliance on manual input.
2. Visual Consumables Management System
   Manages consumables with alerts, batch tracking, and expiry reminders to improve efficiency.
3. Equipment Alarm Monitoring System
   Enables real-time monitoring, alarm notifications, and fault tracing for faster issue resolution.
4. Remote Machine Control Management
   Offers remote start/stop, access control, and encrypted data transmission for secure operation.
5. Equipment Condition Management System
   Tracks equipment health, detects anomalies, and optimizes maintenance strategies.
6. Branded Super-Large Screen Module
   Provides intuitive, real-time data visualization with customization options for branding.
